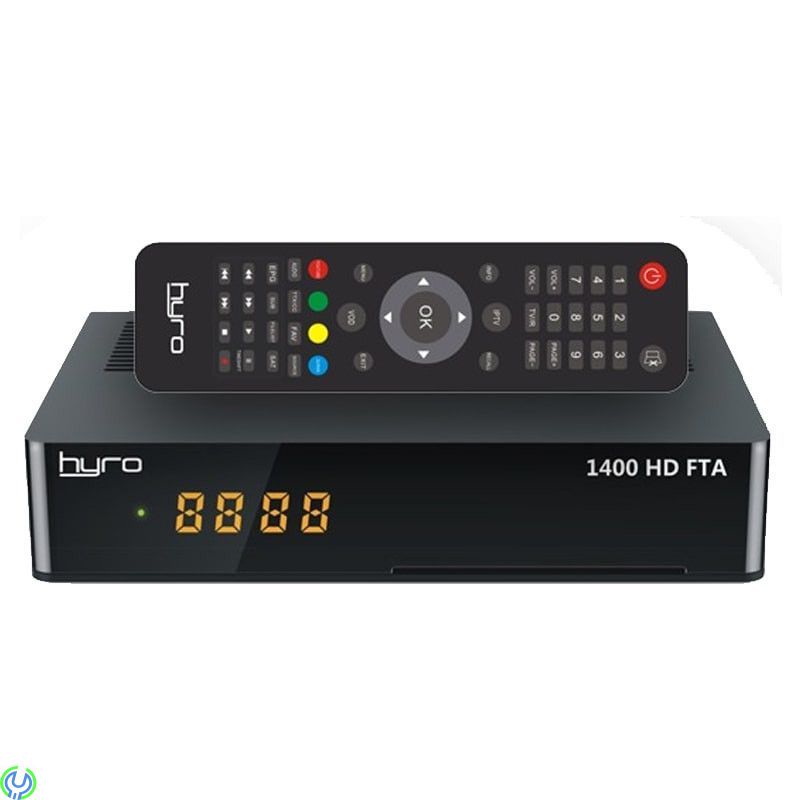

HYRO 1400 HD FTA Satellite Receiver

HYRO 1400 HD FTA Satellite Receiver

Hyro FTA HD is a satellite HDTV receiver with recording
function via connection of separate USB HDD/flash drive.
With Blind scan, favorite lists (8 pcs), video timer and parental control.
Can be placed on tables or mounted on a wall. 170x135x36mm.
Connections HDMI, A/V, digital audio output and USB.
4000 channels memory capacity
HDTV Full HD 1080p USB
Favorite lists, parental controls
HDMI connection to 1080p, scart connection

Specifications

Supported custom sleep time.
Supported custom time to skip designated program.
USB: (FAT, FAT32 and NTFS)
Rename, delete, create files, copy, sort, move, format and set recording path
S/W download, download software and database
Supported music files, mp3.ogg, flac formats.
Music player: supported Pause, FF, FB, Jump
Media play: supported avi, mkv, ts, tp, trp, mpg, mp4.
Supported video loop and FF/FB and Pause, Continue Jump
Supported AVI subtitle file (.srt)
Supported JPEG, BMP format
USB PVR:

Record and play stream files: Recording the current channel (FTA or scramble)..
(Watch and record)
Watch one channel (FTA/Scramble) and Record other channel (FTA/Scramble)
in the same TP, during recording, can change the channel on the same TP
Support Timeshift
USB supported FAT & FAT32, NTFS

Specifications:
DVB-S2 Front End Standards
Input frequency: 950~2150MHz
Entry Level: -65~-25dBm
Input Impedance: 75Ω
LNB Polarization: 13V / 18V / AV, Imax = 300mA
LNB Switch: 22KHz DiSEq C 1.0 / 1.2.
Demodulation: QPSK, 8PSK
Reed-Solomon: 204, 188, t = 8
Roll by factor: 0.35,0.25
FEC: 1/2, 2/3, 3/4, 5/6, 7/8, Automatic
- Symbol speed: 2.0~45 MS/s
DVB Standard: DVB-S/S2 (EN300 421)

Demultiplexor Standards
Standard: ISO/IEC 13818-1
Input Max. Bit Stream rating: 120Mbps (Serial) / 15Mbps (Parallel)

VIDEO Standards

Standard: ISO / IEC 13818-2
MPEG1, MPEG-2 MP @ ML, H.264, VC1, DV, DivX and MPEG4
Aspect ratio: 4:3, 16:9
Video full resolution:
1920 × 1080p and 1920 × 1080i and 1280 × 720p for HD video,
720 × 480p, 720 × 480i, 720 × 576i, and 720 × 576p for SD video,
dual MPEG-1, MPEG-2 and MPEG-4 decoding for SD resolution, MPEG4 AVC/H.264 and
VC1 decoding for dual SD and single HD up to 720p and 1080i and 1080p
Video formats: PAL, NTSC
Video RAM: 128 MB

HDMI output with exclusive support for up to 480p & 480i, 576p & 576i, 720p & 1080i50Hz, 1080P50Hz
Host included Audio/Video: I&P frame support
Format conversion: Pan & Scan, Letterbox
Video plan: 2 squares (1 graphic plan, 1 display plan)

AUDIO Standards
Standard: ISO/IEC 13818-3
Decoding: MPEG-2 layers I and II (Musiccam), MPEG4 AAC and MPEG4 AAC-HE (AAC +),
Dolby Digital (AC-3) with bitrates up to 640 kbit / s, LPCM up to 48 kHz, MP3.
Sample rate: 32, 44.1, 48 kHz
- Audio Output Impedance: Low
The starting position: Mono, Dual-channel, Stereo, Left and right.

A/V Output Standards
Video De-emphasis: CCIR REC.405-1, 625 lines
Video Bandwidth: 5.5MHz
Video Output Impedance: 75Ω
Video output level: 1.0Vp-p
- Audio Output Frequency: 20Hz~20 kHz

PROCESSOR Standards
Chipset: ALI3601
Flash memory: 2 Mbyte / Mbyte
DDRII memory: 64/128 MByte 800Mhz
Tuner: GSXA-30R

FRONT PANEL Standards
IR receiver: 38KHz
Logo
Model
USB socket
Other Provider Features R

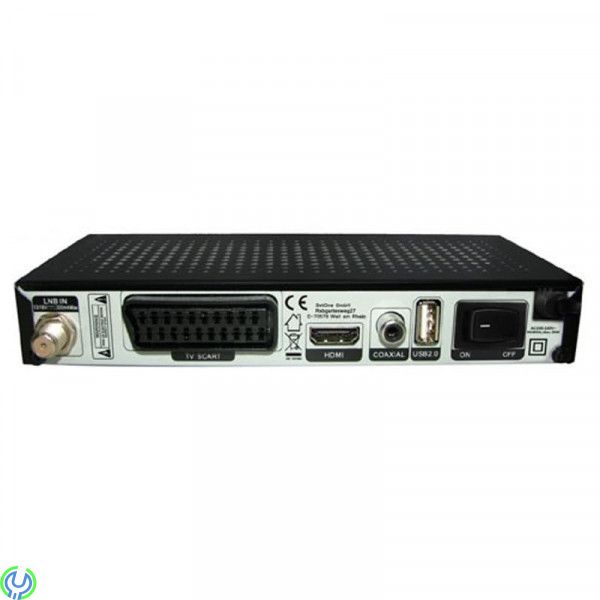

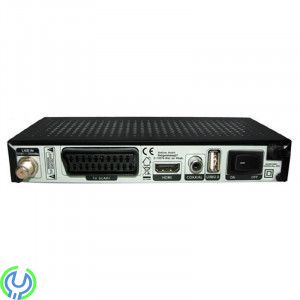

BACK STANDARDS
DVB - LNB input and output F type - Female
Base video: CVBS (RCA)
HDMI output
S/PDIF
SCART
USB2.0

Other standards
Power supply: SMPS, Input AC 200~240V, 50/60Hz; Eureapean plug
Power consumption: Max 25W (full load)
Low consumption: Max 0.8 W (in sleep mode)
Working consumption: Max 8W
Product size: 180*10(77)*28mm, gift box size: 205*160*50mm
Packing, 12 pieces / cardboard, Cardboard size: 450 * 360 * 200mm, 430 * 165 * 180mm
Ambient Operating Temperature: 0~40°C
CE, RoHS, EuP LPC,

ACCESSORIES Standards
RCU Category: IR (Carrier 38KHz)
RCU batteries R
3 lead A/V cable R
Manual (English, etc)
