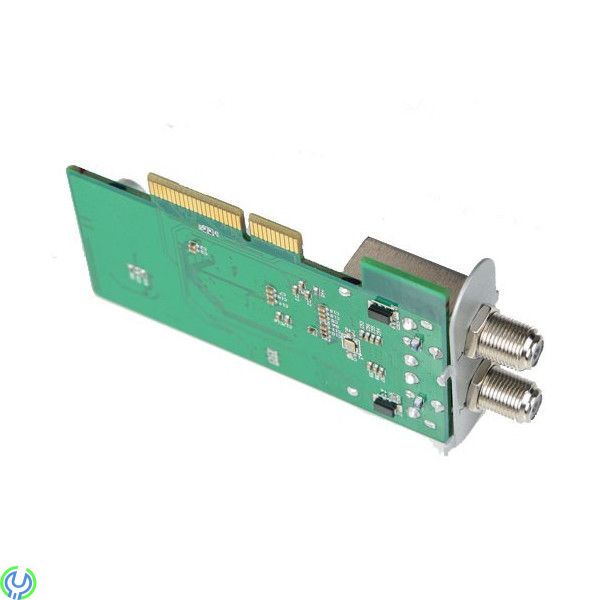

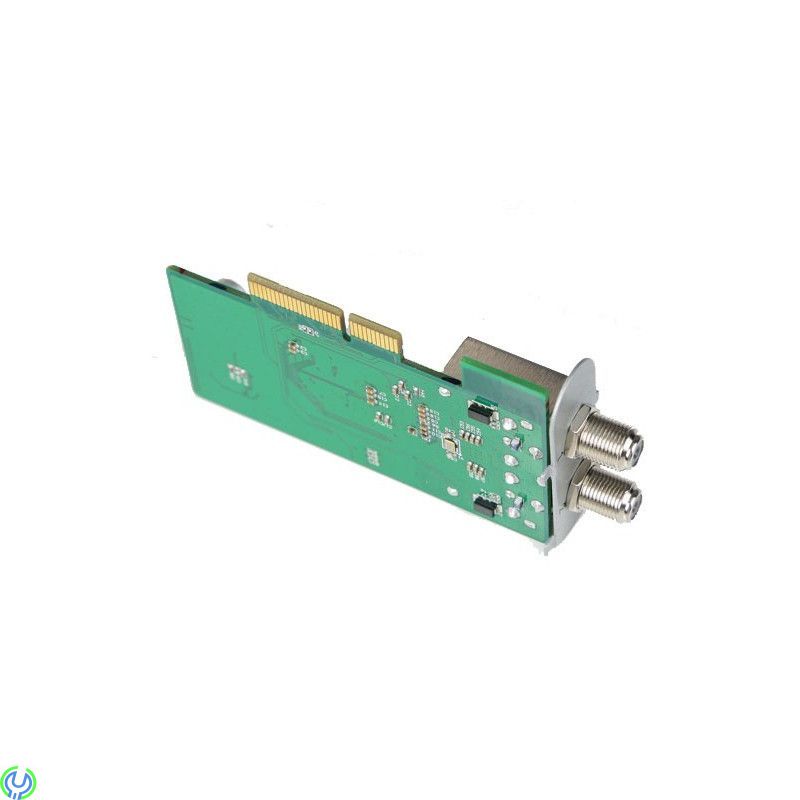

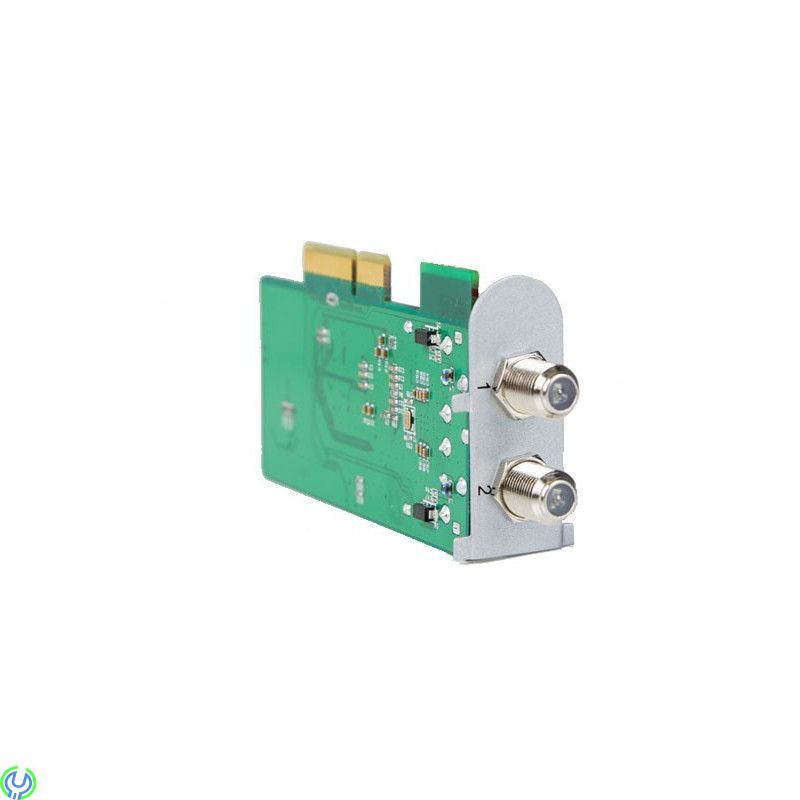

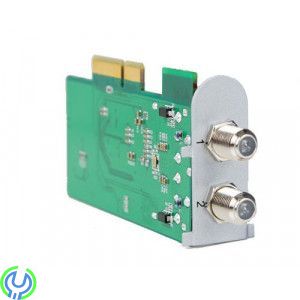

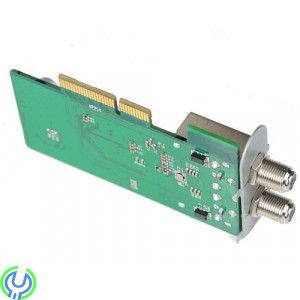

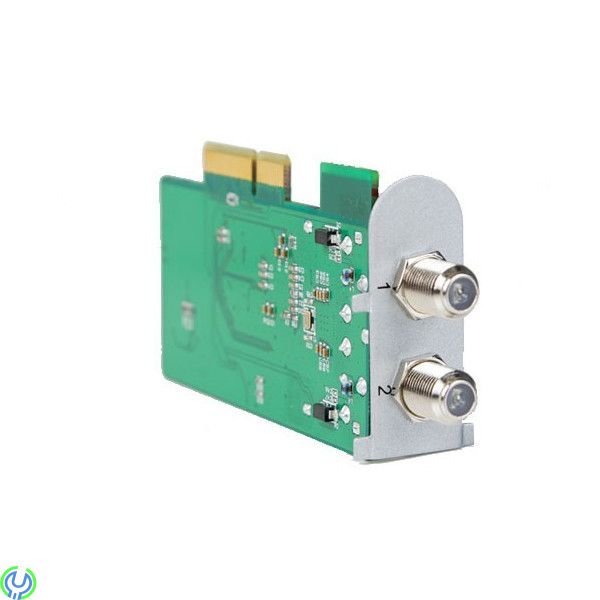

Dual Tuner Satellite - Dreambox DM800SE/ 7020HD

Dual Tuner Satellite (Twin Tuner) - Dreambox

Dreambox Dual Satellite Tuner for DM800HD V2 SE,DM820HD, DM7020HD V2, DM7080HD, DM900 4k, DM920 4k
- DVB-S2 tuner developed with the latest Silicon Labs Technology
- Low heat development, and extremely low power consumption are key words for this exciting new tuner.
- Both satellite inputs are on the same tuner and marked with 1 and 2.
- Dual tuner manages to simultaneously record one channel and watch another channel as well as stream at the same time.

Features
1.Single-chip Two Channels RF-to-Baseband Satellite Receiver
2.RF switches integrated
3.CMOS Fully Integrated RF Front
4.Low noise and wide dynamic range zero-IF receiver
5.Input frequency range: 900-2200 MHz
6 . Input signal level: -80 to 0 dBm
7.More than 80 dB reinforcement control area
8.Fully integrated PLL (divider, charging pump, phase and frequency detectors, loop filters, etc.)
9.Integrated RX VCO
10.Integrated bass LPF with selectable limit frequency from 4MHz to 40MHz with 1MHz increments
11.Integrated LNA with RF AGC
12.Integrated reference oscillator (27MHz by default)
13.I2C bus interface
14.Automatic reinforcement control
15.0.11m RF CMOS Technology
16.3V to 3.6V operation
17.5 × 5 mm QFN40
