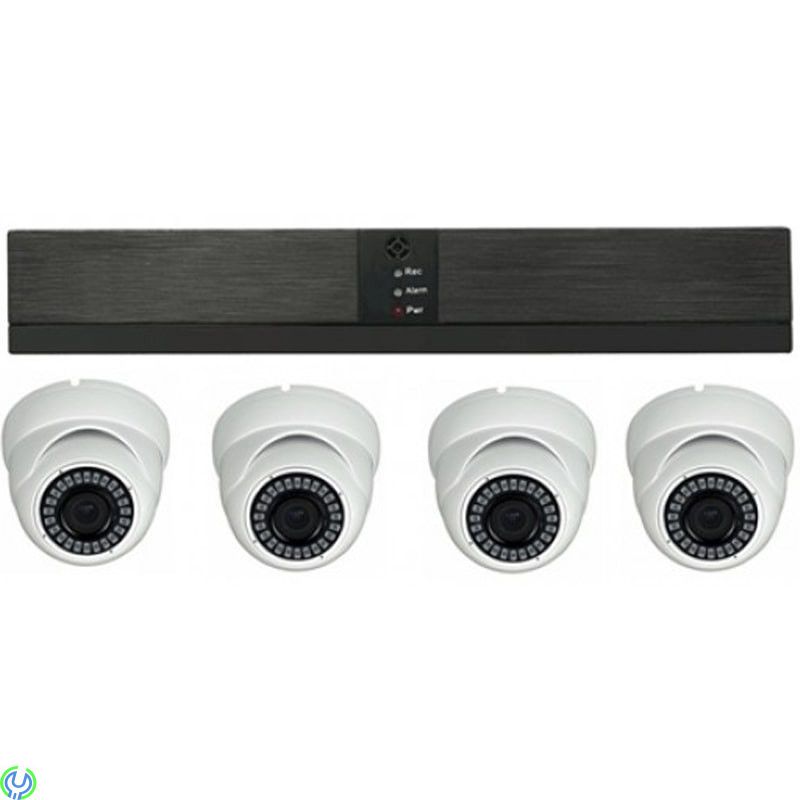

Surveillance System NVR-5004EZ-POE 4MP with 4 Cameras

Surveillance System NVR PoE 1080P with 4 Cameras IP66 4MP

This complete and advanced PoE monitoring system is designed for those who demand the highest quality and reliability. The system offers easy installation without unnecessary cables and connectors.

Agile PoE technology

The system works via PoE (Power over Ethernet), which means the cameras don't need any external power adapters. The power supply is done directly through the same Ethernet cable that is connected to the NVR box.

Easy and quick installation

• Quick installation: The system is easy to install and takes a maximum of 15 minutes from start-up to having a picture in the app.
• Plug & Play: The system is ready for use immediately after plugging in.
• The intuitive and easy-to-understand menu gives you full control so you can easily tailor the system to your needs.

A major advantage of PoE cameras is that they can be connected to your network in several ways:

• Directly to the router
• To the network socket
• To the NVR box

Regardless of the connection method, the box and cameras will find each other automatically.

Powerful cameras with night vision

• The cameras are 4MP, which gives a great image quality and night vision with a range of up to 30 meters.
• In low light, night vision is automatically activated, ensuring equally good monitoring both day and night.

Full control via the app

• Download the free app to your mobile or tablet to stay in the know, no matter where you are in the world.
• In case of unwanted movement, you will receive an instant notification directly in the app.

Flexible connection and expansion

• The system is equipped with:
  • HDMI and VGA outputs for direct connection to display (ideal for retail environments).
  • USB port for included mouse.
  • LAN port for connecting to router.
  • PoE ports for each camera.
• The system is expandable and can be supplemented with more cameras as needed. Everything is seamlessly connected via the same app.

Storage and recording

• The system supports SATA hard drives adapted for continuous operation (24/7) of up to 6TB (not included).
• Recorded footage is compressed using H.265 technology, providing faster transfer speeds and more efficient storage.
• Playback function: Easily skip sequences where nothing happens and go straight to events where the motion detector has been activated.

Advanced technology for safety

• The system uses LINUX as the operating system for stable operation.
• Support for the H.264MP standard for video formats, providing high-quality image and efficient compression.
• Thanks to TCP/IP network technology, the system has strong network communication and remote monitoring capabilities.

Versatile use

With its advanced features and user-friendly design, this surveillance system is a reliable solution for all your security needs.

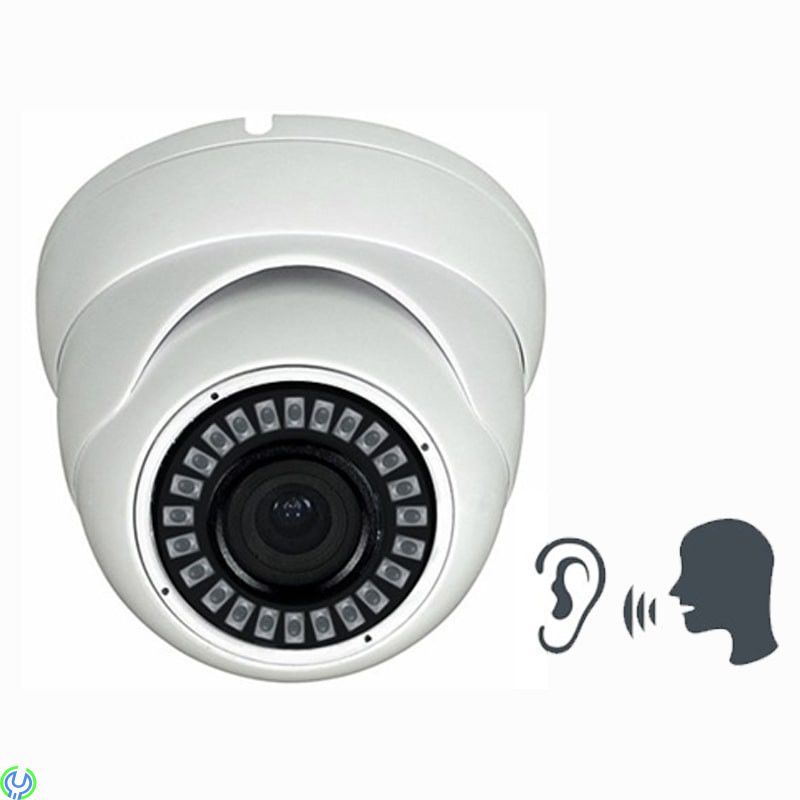

IP CAMERA

FT-AX400DFSP30:
Dimensions: 131 x 93 mm
Weight: 900g
Color: White
Zoom: 2.8mm lens
IR LED: 14μX24PCS (SMT IR LED)
IR range: 30M
Resolution: 4MP (2560 x 1440 pixels)
Main Stream: 4MP@20fps, 1080P/720P@25fps
IP65

NVR
H.265 COMPRESSION
4CH POE IPC INPUT 5MP, 4MP, 3MP, 1080P, 960P, 720P
4CH 40MBPS IPC RECORD SUPPORT 5MP@25FPS PAL, 30FPS NTSC
4CH IPC INPUT AUDIO & 1xRCA AUDIO OUT, 4CH IPC ALARM INPUT
DUAL STREAMING RECORD SUPPORT
1920x1080 HDMI OUTPUT
4 CHANNEL PLAYBACK MAX
PROTOCOL: TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
IOS & ANDROID SUPPORT ("SUPERLIVE PLUS" APP)
WEB CLIENT SUPPORT
NETWORK & USB BACKUP
1xSATA HDD UP TO 6TB
2xUSB 2.0 PORT, 1xRJ45 100Mbps
DIMENSION (MM, W x D x H): 260 × 220 × 40
<90% HUMIDITY
-10°C~+50°C OPERATION TEMPERATURE
DC48V
