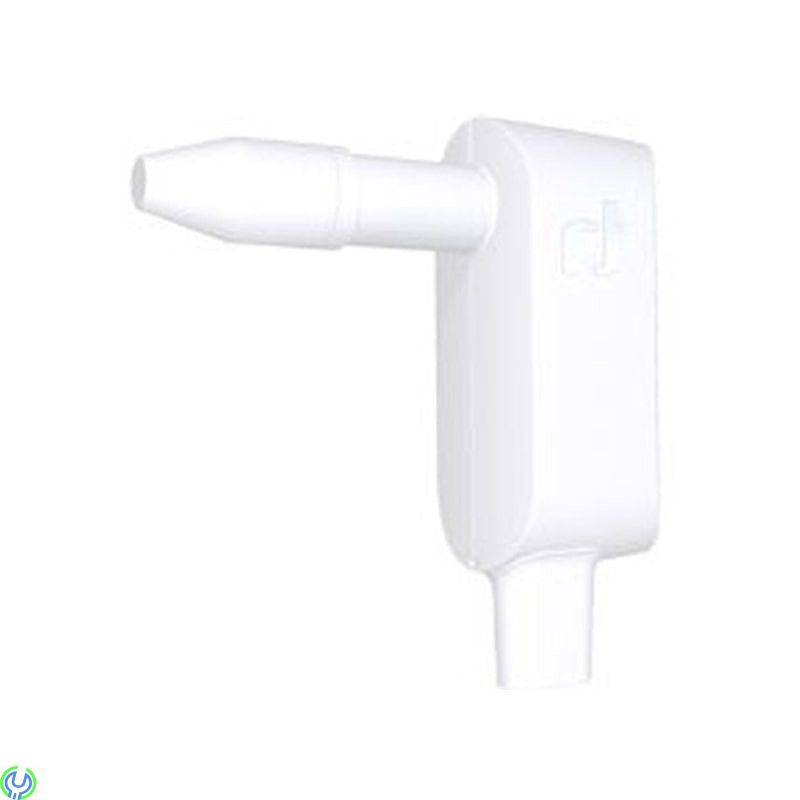

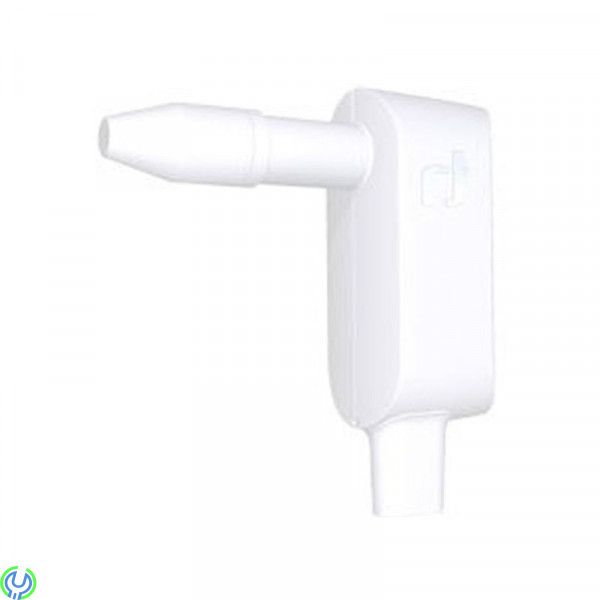

Inverto Dielectric Single 23mm LNB

With this LNB you can receive satellites as close to each other as 2 degrees.
(IDLB-SINL20-MUL )
This LNB has been specially designed for facilities with multiple LNB on one satellite dish.
The new slim feed technology, advanced dielectric materials and optimized front ensure maximum energy transfer from the bowl to LNB even when LNB is located close together.
Thanks to the long neck, you can place the LNB close to each other and gain access to satellites that are otherwise too close to each other.
This LNB provides 1 receiver with signal from 1 satellite.
Intended for use in conjunction with Invertos IDLB-SET01-MULTI-STP-SINGLE or IDLB-SET03-MULTI-STP Properties:
• Narrow feed technology
• Low noise value, DVB-S2 (HDTV) compatible
• Low energy consumption
• Stable with high frequencies Specifications Low Band Input Frequency Range 10.7~11.7 GHz Low Band Output Frequency Range 950~1950 MHz LO Frequency 9.75 GHz High Band Input Frequency Range 11.7~12.75 GHz High Band Output Frequency Range 1100~2150 MHz LO Frequency 10.6 GHz Noise Figure 0.2dB type.
(0.7dB max.) LO Initial Accuracy +/- 1.0 MHz max.
LO Temperature Operation +/- 3.0 MHz max. LO Phase Noise @ 10K Hz -90 dBc/Hz max.
Conversion Gain 60 dB min.
Gain Ripple +/- 0.75 dB/27MHz Gain Variation +/- 4 dB Image Rejection 40 dB min.
1 dB Compression Point (O/P) 0.0 dBm min.
Cross talk 23 dB min. Control Signals Ca [V] 11.0~14.0 V Control Signals Cb [H] 16.0~20.0 V Control Signals Cc [Band switching] 22KHz +/- 4KHz 0.4V – 0.8V pp O/P VSWR 2.0: 1 ~ Radiated Interference -60 dBm DC Power 120mA Max.@11-20V Working Temperature - 30~+ 60 Output Impedance 75 O (F-Type) Weight 151 g
