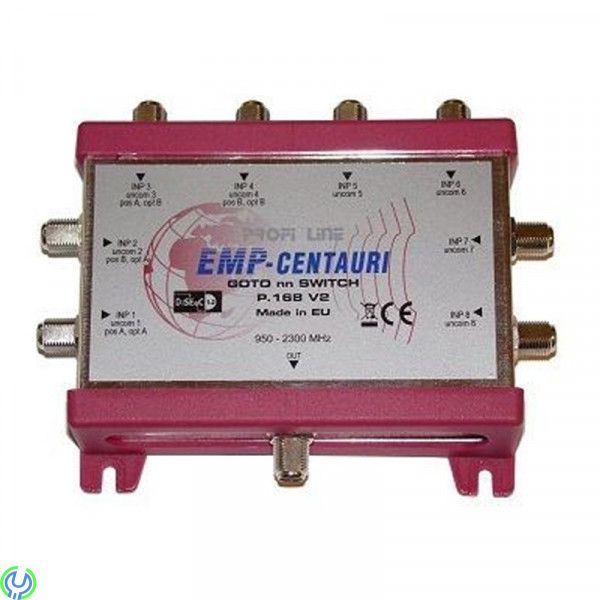

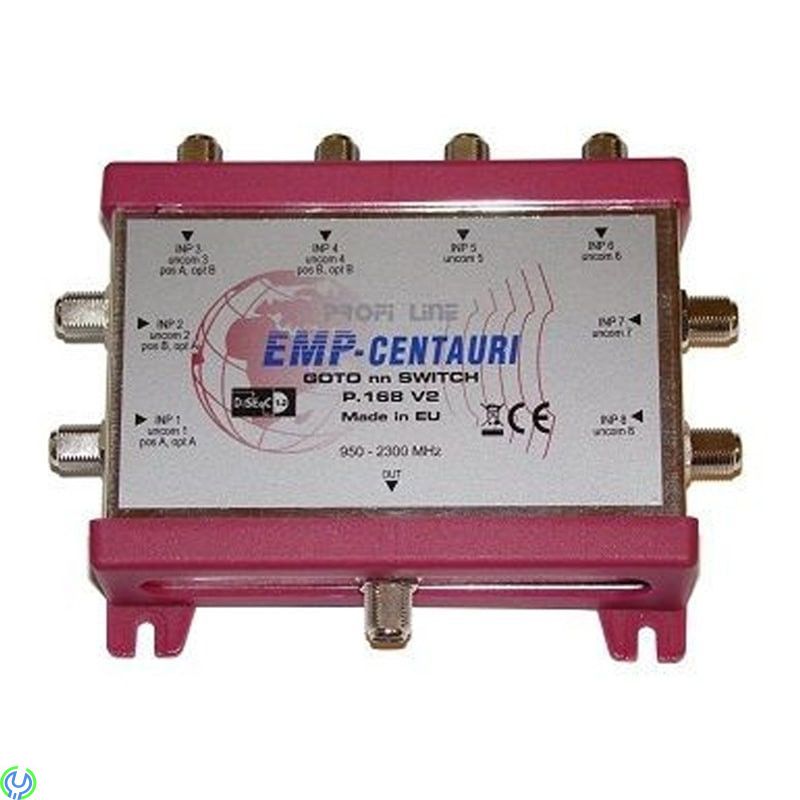

EMP 8-way Switch S8/1PCN-3
kr247.50 kr495.00 Save -50%
(tax incl.)
8in/1out switch designed for direct connection of up to 8 SAT
8in/1out switch designed for direct connection of up to 8 SAT IF inputs to a receiver. Inputs with DiSEqC 1.2 command "Goto nn" (6B), or by protocol DiSEqC 1.1. Inputs 1 through 4 are selectable even with the command "Write NO" (38), making the device compatible with standard DiSEqC 4 input switching.
The device is equipped with one of two software versions, V1 and V2. The difference between them lies in the way the DiSEqC 1.1 control is carried out.
If you plan to use the controls in DiSEqC 1.1, you'll need to choose which version is better suited to your configuration. See the "Receivers setting" sectionlg for detailed information.
If the version is not specified in the order, V1 will be broadcast.
| Specifications for p. 168 (S8/1PCN-3) | ||
| Number of entrances | 8 | |
| Number of outputs | 1 | |
| Frequency range |
| 950-2300 MHz |
| Control |
| DiSEqC 1.0, 1.1, 1.2 |
| Connection loss |
| 5 dB avg. |
| Isolation between Inputs |
| 30 dB avg. |
| Power consumption |
| 50mA |
| LNB Power |
| 400 mA max. |
| Dimensions (w, d, h [cm]) |
| 13.6 x 10.4 x 3.3 |
| Temperature range |
| -30 °C - 70 ° C |
