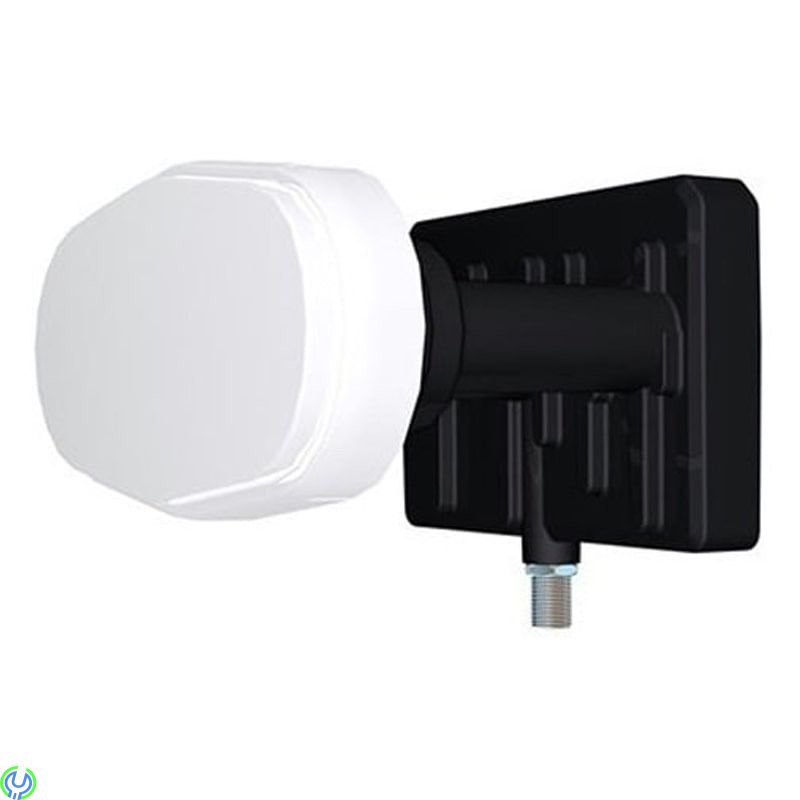

Single triplefeed LNB FOR 3 Satellite Positions

This Triple Feed LNB is a monoblock LNBF for Ku-band satellite reception from satellite positions 13 ˚ E , 16 ˚ E and 19,2 ˚ E in Central European countries .
It is designed to be mounted with commercially available satellite dishes having the following characteristics :
- 85cm wide dish with offset reflector
- 40mm feed clamp with ~ 7 mm profile ( LNB will be supplied with 40 mm ring -adapter )
- F/D = 0,6 It has a frequency range of 10,7 to 12.75GHz divided into Low Band ( 10.70 to 11.70GHz ) and High Band ( 11.70 to 12.75GHz ).
It receives waves with horizontal and vertical polarization.
This LNB provides a switchable IF output ( Single-model ).
The output also carries signals power supply and control. Output port is F type.
DiSEqC1.0 commands allow switching of output for a given bandwidth and satellite positions DiSEqC ODU Distribution is as follows : " ODU A " corresponds to 16E , " ODU B " to 13E and " ODU C " to 19.2E.
As long as no DiSEqC command has been received , the selected satellite positions are 16E ( i.e. DiSEqC A ) . The LNB consists of three feeds , one for each orbital position.
The feeds allow mounting in the feed clamp of the satellite dish.
The feeds will be labeled with " 13˚E " , " 16˚E " and " 19.2˚E " respectively. DiSEqC positions ( A/B/C ) and respective satellite positions ( 16E/13E/19.2E ) are marked on the LNB housing.
LNB is supplied with 40mm plastic ring adapter.

Low Band Input Frequency Range 10.7 ~ 11.7 GHz
O/P Frequency Range 950 ~ 1950 MHz
LO Frequency 9.75 GHz
Noise Figure 1.0(max) dB
High Band Input Frequency Range 11.7 ~ 12.75 GHz
O/P Frequency Range 1100 ~ 2150 MHz
LO Frequency 10.6 GHz
Noise Figure 1.0(max) dB
LO Initial Accuracy ± 1.0 MHz
LO Temperature Drift ± 3.0 MHz
LO Phase Noise @ 1K Hz -55 dBc / Hz
LO Phase Noise @ 10K Hz -80 dBc / Hz
LO Phase Noise @ 100K Hz -100 dBc / Hz
Conversion Gain 50 ~ 62 dB
Gain Variation 6 [max] dB
Output 1 dB Compression Point 0.0 [min.] dBm
Crosstalk Isolation 20 (min)dB
Output VSWR 2.5 : 1~
Output Spurious (inter-modulation) -55 [max] dBm
DC Power 10~20/150 [ max.] DCV/mA
Working Temperature - 30 ~ + 60 °C
Output Impedance 75 Ω
Polarity , Band & Satellite Selection V, L, 16°E 13V, 0kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection V, H,16°E 13V, 22kHz, DiSEqC1.0: Sat APolarity , Band & Satellite Selection V, H, 16°E 13V, 22kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection H, L, 16°E 18V, 0kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection H, H, 16°E 18V, 22kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection V, L, 13°E 13V, 0kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection V, H, 13°E 13V, 22kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection H, L, 13°E 18V, 0kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection H, H, 13°E 18V, 22kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection V, L, 19.2°E 13V, 0kHz, DiSEqC1.0: Sat BPolarity , Band & Satellite Selection V, L, 19.2°E 13V, 0kHz, DiSEqC1.0: Sat C
Polarity , Band & Satellite Selection V, H, 19.2°E13V, 22kHz, DiSEqC1.0: Sat C
Polarity , Band & Satellite Selection H, L, 19.2°E 18V, 0kHz, DiSEqC1.0: Sat C
Polarity , Band & Satellite Selection H, H, 19.2°E 18V, 22kHz, DiSEqC1.0: Sat C
