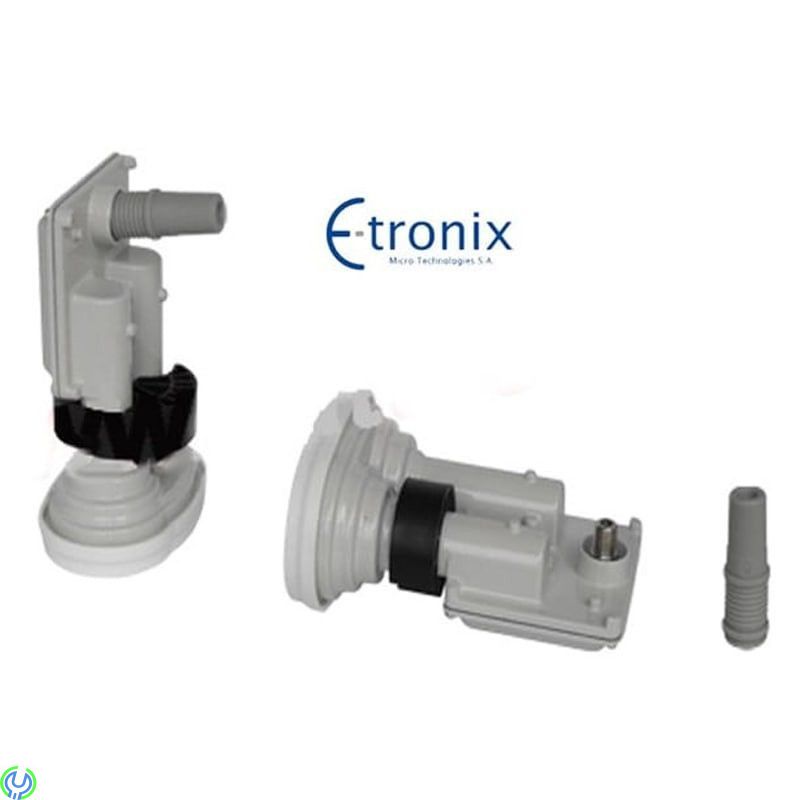

E-tronix ETX-03MSI Single, 3° degree

A high-performance monoblock 3 ° LNB with 1 output.
Low phase noise.
DVB-S2 (HDTV) compatible.
Low noise factor.
Low power consumption.
High Cross-pole performance.
High frequency stability.
DiSEqC Switching.

specification:
Low Band Frequency: 10.7~11.7GHz.
Low Band Output Range: 950~1950 MHz.
Low Band LO Frequency: 9.75 GHz.
High Band Frequency: 11.7~12.75 GHz.
High Band Output Range: 1100~2150 MHz.
High Band LO Frequency: 10.6 GHz.
Noise Figure: 0.1 dB type.
LO Initial Accuracy: + / - 1.0 MHz Max.
LO temperature operation: + / - 3.0 MHz Max.
Phase noise (@ 10 kHz): - 90 dBc / Hz Max.
Conversion Gain: 65 dB Min.
Gain Ripple (over 26MHz bandwidth): + / - 0.75 dB.
Gain Variation (over Full Band): + / - 4 dB Max.
Picture Rejection: 40 dB Min.
1 dB compression Point (@ output): 0.0 dBm Min.
Cross Polarization Insulation: 25 dB Min.
Control signal Ca (vertical polarization): 11.0 ~14.0 V.
Control signal CB (horizontal polarization): 16.0 ~20.0 V.
Control signal Cc (Band Switching): 22 + / - 4 kHz.
Satellite A/B Selection: DiSEqC 1.0.
Output VSWR: 2.0: 1.
I-Band Interference: - 60 dBm max.
Power consumption: 120 mA Max. @ 11~20V.
Operating temperature: - 30°C~+60°C.
Starting impedance: 75.
Output: F-type (female).
Weight: 0.320 Kg.
Warranty: 2 years.
