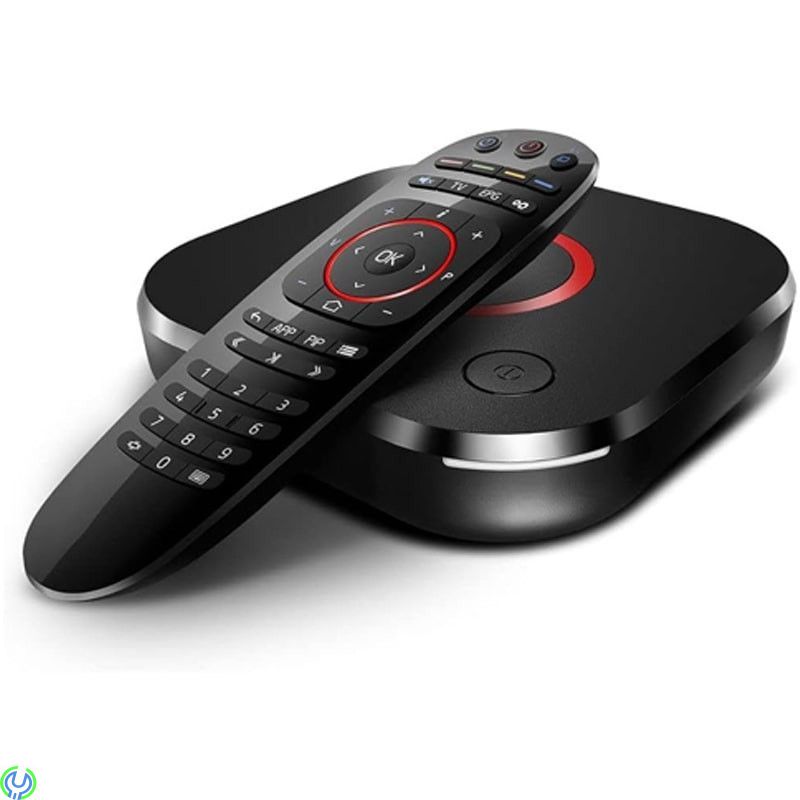

MAG 544 IPTV Set Top Box - 4K HDR- Linux

MAG 544 IPTV Set Top Box with 4K and HEVC H 265 Supports Linux
MAG544 is a powerful IPTV set-top box based on Linux OS.
The devices are powered by Amlogic S905Y4 chipset with quad-core ARM Cortex-A35 processor.
Thanks to the new hardware, the model significantly outperforms the previous generation set-top boxes in terms of performance.
The device plays 4K videos smoothly and supports all modern codecs including HEVC.
Infomir's API allows you to quickly implement the model in any video service that previously uses MAG devices.
The device supports eight-channel Dolby Digital PlusTM audio, is equipped with two USB 2.0 ports, and can be connected to the Internet via an Ethernet port.
Before you want to buy a smart IPTV set-top box, check with your service provider which version of MINISTRA they are using.
This is a crucial point that we want to draw your attention to when buying the IPTV receiver.
This STB model runs only on Ministra v.5.6.10.
Please note that the manufacturer may change the appearance of the packaging, product specifications or accessories.
Please note that the pictures on this product model are for reference only, the actual product may vary slightly.
Please note in particular that all set-top boxes you buy from us come with standard settings from the factory
and are not pre-programmed and do not contain IP transmitters
Technical data:
Chipset: Amlogic S905Y4-B
Processor: ARM Cortex-A35 quad-core, 2,000 MHz
Performance: 16,500 DMIPS
RAM: 1GB DDR3
Storage: 4GB eMMC
Graphics card: ARM G31 MP2, 850MHz. Supports OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0
Software:
Operating System: Linux 4.9
Supported middleware: Pre-integrated Ministra TV platform. Changes with carrier apps, personalization, or
complete replacement possible.
External interfaces:
HDMI 2.1,
100 Mbit/s Ethernet,
USB 2.0×2
Audio and video:
Audio Coding MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video mode PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video encoding MPEG1/2 MPHL, MPEG4 part 2 (ASP), AV1, MJPEG streams, H.265 Main/Main 10 L5.1 High 2160p 60 fps (optional),
H.264 AVC High L5.1 2160p 30fps, XviD, 3D video support
Video Container TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image format JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subtitles, WebVtt, subtitles
Playlist format M3U, M3U8, PLS, CUE
Measure:
Length 120mm
Width 78 mm
Height 21mm
Weight 110g

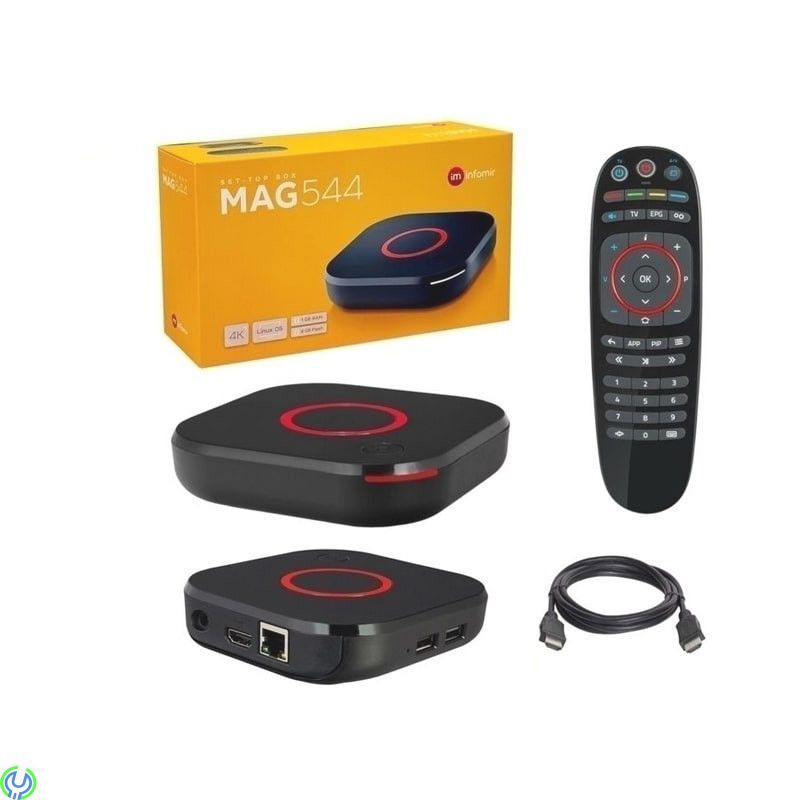

Scope of delivery:
1 x MAG 544 set-top box
1 x User Manual
1 x HDMI cable
1 x 5V/2A Power Supply
1 x Remote Control
2 x AAA batteries
