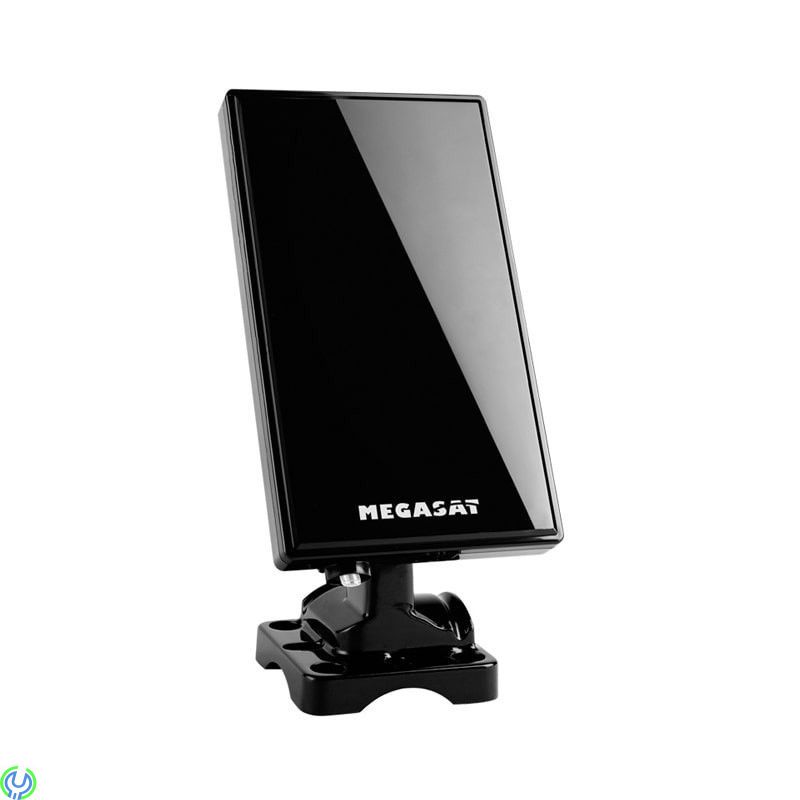

MEGASAT Active DVB-T2 antenna T-40

The DVB-T antennas from Megasat guarantee very good reception performance for all terrestrial TV and radio signals.

The active DVB-T antenna is suitable for indoor and outdoor use and is powered by the supplied power supply unit. Optionally, the power supply can also be provided by the DVB-T receiver, if the receiver delivers the necessary 5 volts via the antenna socket.

The house, specially designed for outdoor use, is waterproof and resistant to UV rays.

DVB-T (SD) and DVB-T2 (HD).

Including LTE filters.

Technical data

Frequency range: VHF 87.5 - 230 MHz / UHF 470 - 862 MHz
Reception area: DVB-T/T2/FM/VHF/UHF/DAB/DAB+
Video encoding: H.264 and H.265 / HEVC
Gain: max. 28 dB
Output power: max. 100 dBμV
Resistance: 75 Ohms
Noise:

LTE filter for interference-free reception

Power supply via separate AC/DC mains cable (DV 6V/100mA)
or via DVB-T receiver (DV 5V / 40mA)

Connections

1x Coaxial Line F Connector
