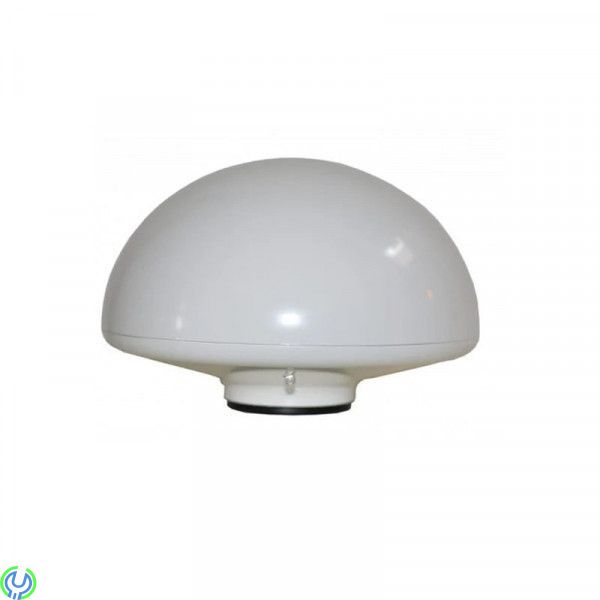

Tertek Evolution 2 All-In-One Pro (110cm. mast)

Tertek antenna where you can receive both Internet and DAB+/TV. The Tertec antenna receives both vertical and horizontal signals, supplied with 12/24/220 volt multi-socket supply, incl. Mounting bracket.
TERTEC Internet MIMO
2G/3G/4G/5G LTE Internet antenna.
TERTEK Internet MIMO is a multi-band all-round beam internet antenna with a unique design on mast and top-close.
If you are tired of bad Hot Spot and Wifi systems, TERTEK Internet MIMO is just for you.
TERTEK Internet MIMO is a UV-resistant mobile external antenna that can be easily connected to a router or modem.
Optimal 360 degrees signal reception
One antenna for everything, TV / DAB + signals (DVB-T2, DAB +, FM), VHF / UHF, H.265 (HEVC), 3G, 4G, 5G LTE.
Can be mounted directly through the roof of the trolley (100% sealed off at penetration)
Total transport height 120 mm
Is extremely weather and wind resistant
Up to 28 db. reinforcement
Protected against LTE interference and Tetra
No interference from electrical installations and mobile phones in the area
Quick and easy to install

Comes with 110 cm. mast and 3 m. cable

Specifications TERTEC DAB + / TV

Diode color: Transparent / Red
5G/LTE & Tetra safe: Yes
Noise levels: <3.0dB
Max. Output level: 108/104 dBuv
Power consumption: 50mA
Channel: DVB-T2 / FM / DAB + / HEVC
Impedance: 75 ohms
Power supply: 230v / 12v
Width: 190 mm
Height: 120 mm
Band: BIV / V
Vertical opening angle: 180 degrees
Horizontal opening angle: 360 degrees
Wind load: 5,5N
Frequency range DAB: 174-300 MHz
Frequency range FM: 87.5-108 MHz
Frequency range VHF: 147-300 MHz
Frequency range UHF: 470-694 MHz
Contact: F-Conn.
Specifications TERTEC Internet MIMO:
Frequency band: 698-960 MHz - 1420-1520 MHz - 1710-2690 MHz - 3400-3800 MHz
Polarization: Linear
2G/3G/4G/5G/LTE: MIMO
Max Gain (dBi): 5.5
Pattern zimut: Omnic direction
Impedance: 50 Ω
Max power: 10w
Cable: RG316 (2x3m.)
Connector: 2xSMA
Dimensions: 190 x 120 mm.
Temperature: -40°C~+85°C
Material: UV resistant ABS
Weight: 425 grams
Wind load: 5.5 N

Comes with 110 cm. mast and 3 m. cable
