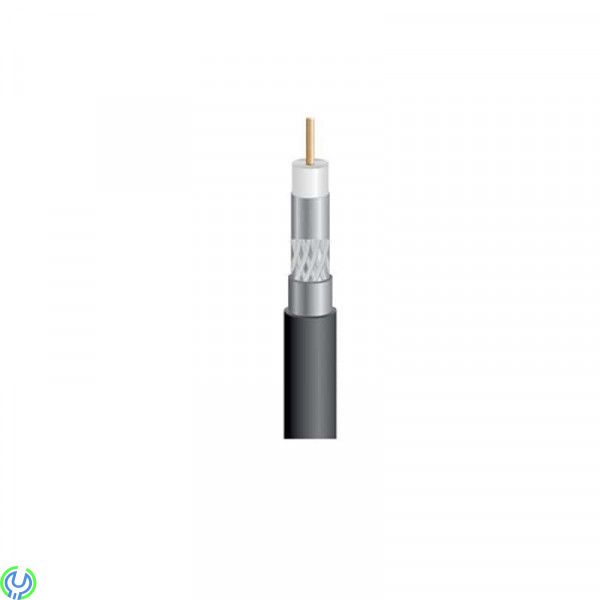

TRIPLE SCREEN CABLE RG59T,WHITE

Macab's triple-screened cables first have a foil glued to dielectrics.
It severely shields against high frequencies.
On top of the foil is an aluminum braid that has at least 60% coverage.
This mainly shields the low frequencies.
Finally, there is another aluminum foil that is against the mantle.
Screen attenuation is at least 85 dB across the entire frequency spectrum.
The glued foil prevents the screen from being pushed back and simplifies contacting.

- Copper provides lower resistance than the cheaper copper-connected steel wire.
- Gas-inspired foam provides longer service life and lower damping
- Glued foil provides better screen properties, especially at high frequencies.
- Easier assembly of connectors.
- Dense screen braid (>57%) screens the low frequencies.
- Overlapped foil provides even better screen cushioning and with an extra moisture barrier.
- PVC, PE or halogen-free mantle depending on installation environment.
- High shielding damping (Class A)
- Better interference protection on the return band
- Low loop resistance
- High aging resistance to constituent plastics

MACAB
Use Antenna
Length 500 m
Color White
Impedance 75
Type RG-59T
Cable diameter 6.2 mm
External materials PVC
