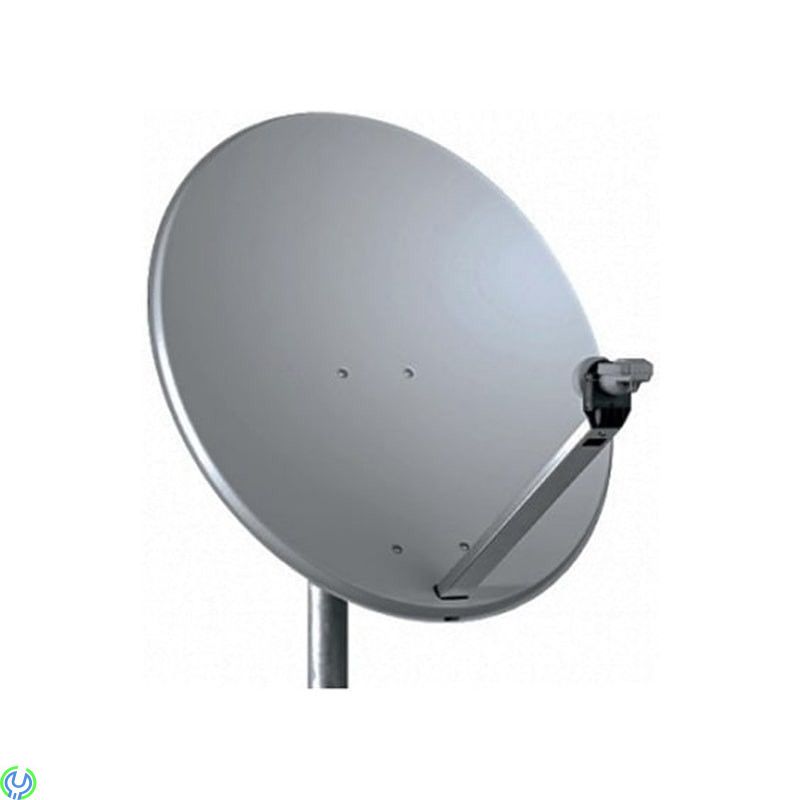

Tele System PF80, 80cm Parabol High Quality

TECHNICAL DATA
Nice design and very easy to install. Bracket in galvanized steel is equipped with
careful surface support the bowl, which makes the antenna
strong and reliable for a long time.
The feed arm is in aluminum alloy.
Reflectors are available in steel or in aluminum.
TF_80 Aluminium -

TECHNICAL DATA

Parbol dimensions (external) (mm) 845x745
Gain at 10.75 GHz (dB) 36.8
Gain at 11.75 GHz (dB) 37.8
Gain at 12.75 GHz (dB) 38.5
Half power beam width at 12.75 GHz (degrees) < 2.2°
Cross-polar discrimination on the main axis (dB) > 27
Mast clamp for (mm) 32 - 76
Height range (degrees) 10° - 56°
Height with passing post (degrees) 42°
F/D ratio 0.6
Offset angle (degrees) 25°
Wind load at 72 Km/h (Kg) 17
Wind load at 144 Km/h (Kg) 69
Wind load at 216 Km/h (Kg) 156
Feed bracket diameter (mm) 23/40
Available reflector materials steel/aluminium
Available colours white/anthracite/red
Galvanized steel back bracket + plastic insert
AZ/EL galvanized steel holder
LNB Arm (48x22mm) made of aluminum
Plastic LNB holder
