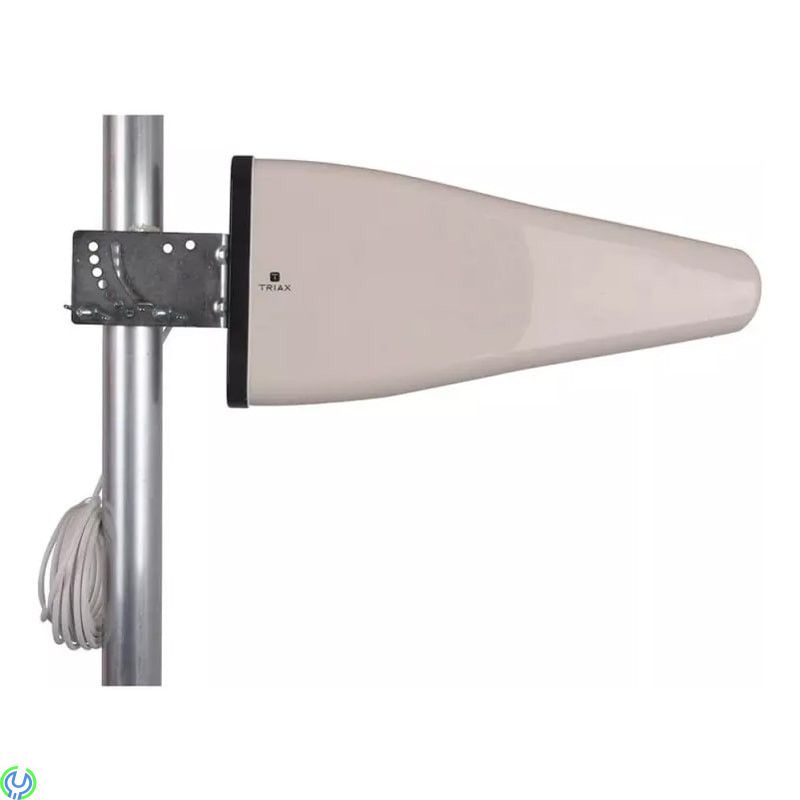

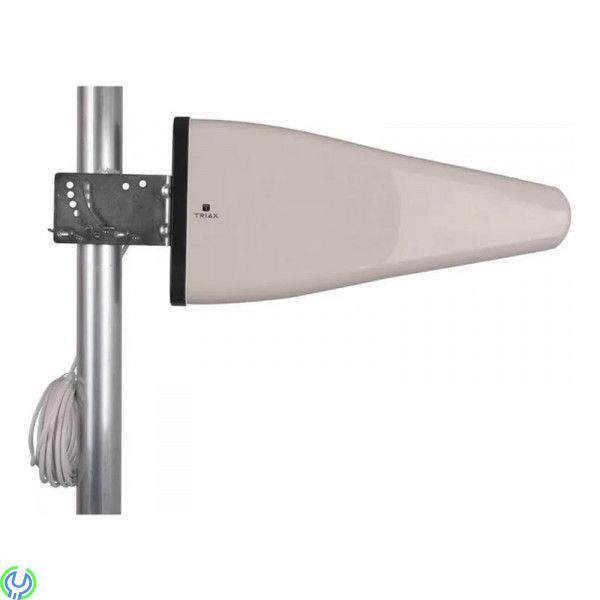

TRIAX 5G Directional Antenna D5A White Cable

Future-proof connectivity, no matter where you are

Work, relax and play online - quickly and reliably, wherever you are. TRIAX 5G antennas turbo your mobile broadband in areas where fiber can't reach.
Simply connect the antenna directly to your 4G/5G router to get the best possible signal wherever you are. The antenna amplifies the signal by 11 dB.
The antenna is ready for the ongoing 5G rollout in Scandinavia, providing speeds up to 100 times faster than 4G. It's fully compatible with all other mobile signals: Take advantage of the highest possible 4G LTE speeds now without having to upgrade when 5G arrives.
For the best possible speed and reliability, our antennas are MIMO-compatible. For directional antennas, we recommend installing a set 70 cm apart at 45 degree opposite angles.
The antenna comes with a 7m white cable with connectors that are ready to be mounted directly on the router.

PROPERTIES
Antenna Type Directional
Outdoor Antenna Usage
Polarization vertically or horizontally
MIMO: Yes (using two antennas)
FREQUENCY RANGE
Frequency range 698-960/1710-2700/3300-3600/4800-5000 MHz
Services GMS/Wi-Fi/3G/4G/LTE/5G - (5G low band)
REINFORCEMENT
Gain 10...11 dBi
VSWR < 2.5
ELECTRICAL DATA

Front to Rear Ratio Horizontal > 21 dB
Impedance 50 Ω
GENERAL SPECIFICATIONS
Enclosure rating 65
Lightning protection Lightning Protection/DC Protected
Temperature - operation -40... +60 °C

CONNECTIONS
Connection Type: SMA-Male
Type of Output Cable PVC White Low Loss Coaxial Cable

MECHANICAL DATA
Opening angle Horizontal 60°
Opening Angle: Vertical 55°
Diameter of installation rod 30-53 mm
Brackets with wing nuts

Material: Plastic housing ABS
Length 445 mm
Product Depth 70 mm
Height 210 mm
Colour RAL 1013 - White
Pack size: 1
Total height 0.568 m
Overall width 0.217 m
Total depth 0.087 m
Unit volume 0.011 m3
Net weight 1,180 kg
Tare weight 0.235 kg
Total weight 1,415 kg
