Directional 4G antenna 8-9 dBi

The guide antenna for 4G, 3G and GSM. Provides 9 dB to amplification the signal.
Connection: N-female.
Cable length: 0.2 meters. Comes with multi-mount for mast tubes.
A log-periodic antenna for dual frequency bands in the areas:
806-960 MHZ and 1710-2700 MHz.
for our Scandinavian 4G network.

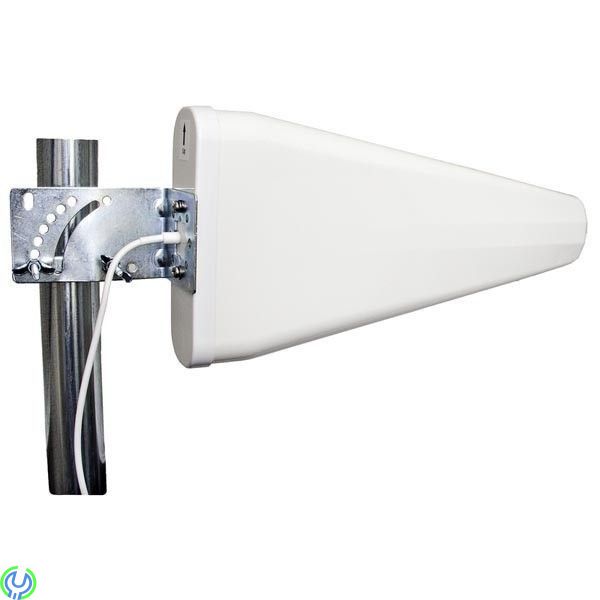

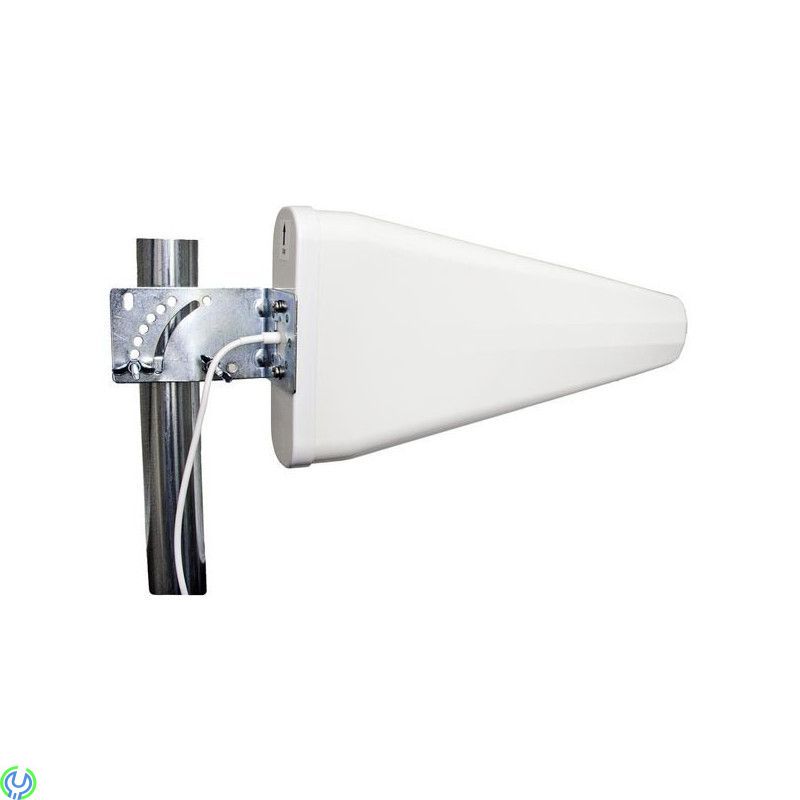

The design consists of an encapsulated yagi antenna with a smart
bracket that allows tilting of the antenna for optimization of reception.
The Pro-5000 comes in a kit, with 0.2 meter low-loss cable of the type
LMR200. At the end is an N-connector installed.
Use:
Amplification of 4G signal
GSM/CDMA/PCS/3G/WLAN system
800 MHz
LTE band for 4G
900 MHz
GSM (2G) singleband (can also be used for 4G)
1800/1900 MHz
GSM (2G) dualband (can also be used for 4G)
2170 MHz
Tape for 3G (can also be used for 4G)
2300 MHz
New band for 4G
2600 MHz
LTE band for 4G
For coverage map,
click here
Technical data:
Frequency band: 806-960MHZ/1700-2700MHz
VSWR: <1.7
Impedance: 50 Ohms
Reinforcement: 9 dBi +- 1 dB
Polarization: Vertical
Opening angle H: 60/55 degrees (+-8 gr)
Opening angle V: 50/45 degrees (+-5 gr)
Front/back: >21 dB
Max Power: 100W
Connection: SMA-male
Protection: DC-grounded
Dimensions: 290x210x50 mm
Weight: 0.75 kg
Wind class: 150 km/h
Mounting: For mast pipes 30-53 mm
Material in house: UV protected ABS
For mast pipes: 30-53 m
