2G/GSM Repeater

Improves your indoor mobile coverage with this Complete Package.
900MHz 2G GSM Mobile Phone Signal Cellular Repeater Amplifier Booster
This is a perfect solution for the place where the mobile signal is weak and you can't make calls.

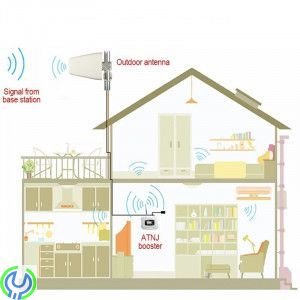

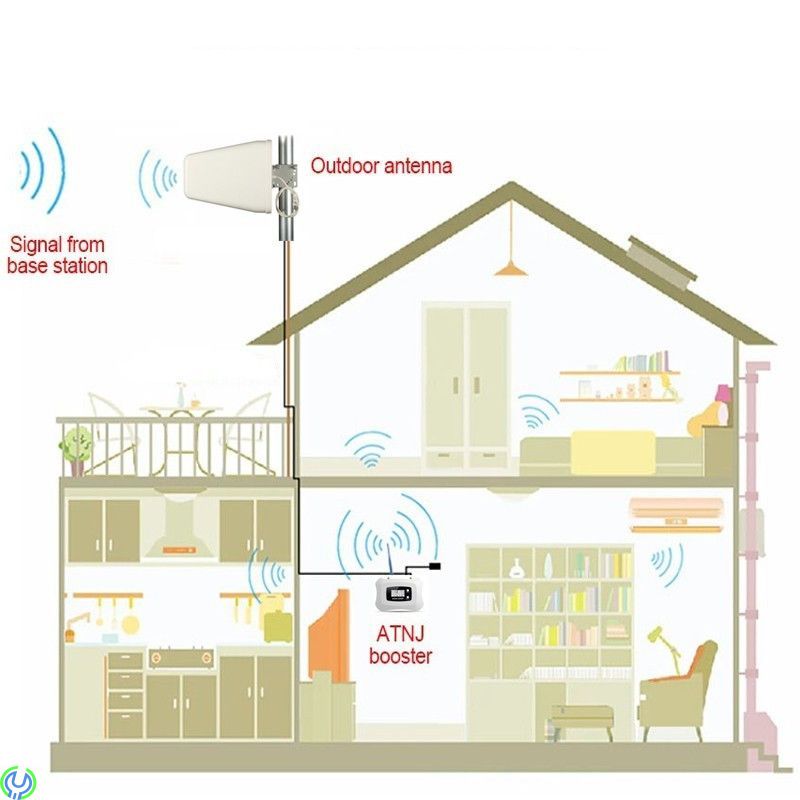

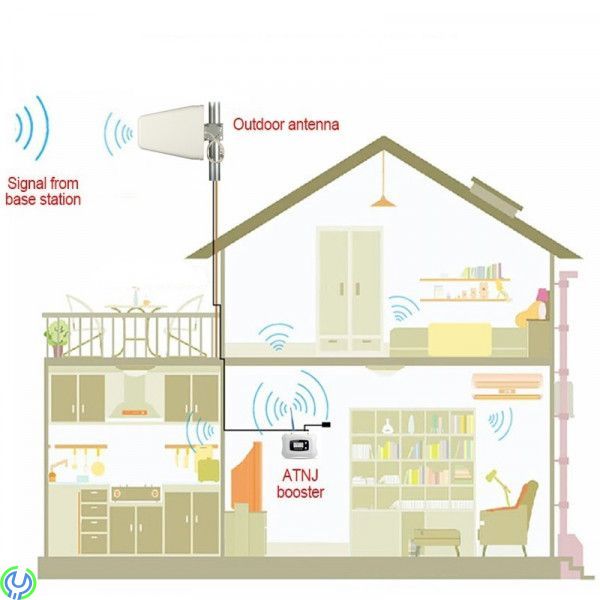

GSM 900MHZ 2G/GSM Pico repeater is applied specifically in a small indoor DAS system. The base station signal is connected and amplified by pico repeater into the construction system. The amplified signals are transmitted by an indoor antenna. In the meantime, the indoor antenna receives the mobile phone signal and sends the signal to the base station as an uplink. This method can eliminate signal dead points, reject the interference, provide more stable signal communication for mobile phone users. This Pico repeater mainly solves the problem during construction. The scope area is as large as 3000 square meters in open space, and 1000 sqm in partial obstacle area, 500 sqm in complete obstacle area. The edge effect level of the coverage area is above 85 dBm. The output power level of the repector is less than 20 dBm.
Pico Repeater is a bidirectional amplifier that enables the reception of signals, amplifies the signal and relays to areas where there is no or very low signal level coverage that allows a mobile user to establish a call connection.
Pico Repeater can be distributed within indoor coverage and dead area. It is especially advantageous to use in 100 SQM-1000 SQM, which is a very economical solution. The output power is up to 20 dBm per carrier.
At the same time, it can also increase the speed of GPRS.

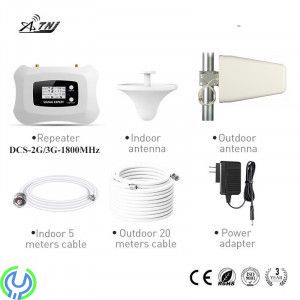

Packing list:
1: Booster×1
2: Power Adapter×1
3: Indoor Celling Antenna×1
4: Outdoor yagi Anternna×1
5: 20 meters Cable×1
6: Instruction Manual×1

Specifications:
Gain
>65dB
Automatic Gain Control( AGC)
>30dBm
Noise Figure
>4dB
Gain Flatness
>5dB (p-p),
Automatic Gain Control (1dB step)
30dB in step of 1dB (Auto)
Maximum Output Power
UL10-20dBm DL15-27dBm
Input power range
-55 dBm~-15 dBm

AC POWER
AC 95-250V
Adapter output power
DC5.0V
Temperature range
- 25?~+55?
Relative humidity
≤80%
RF interface
SMA-F
Power interface
KLD-35-13
Weight
≤0.3kg
Size
160×100×27mm
