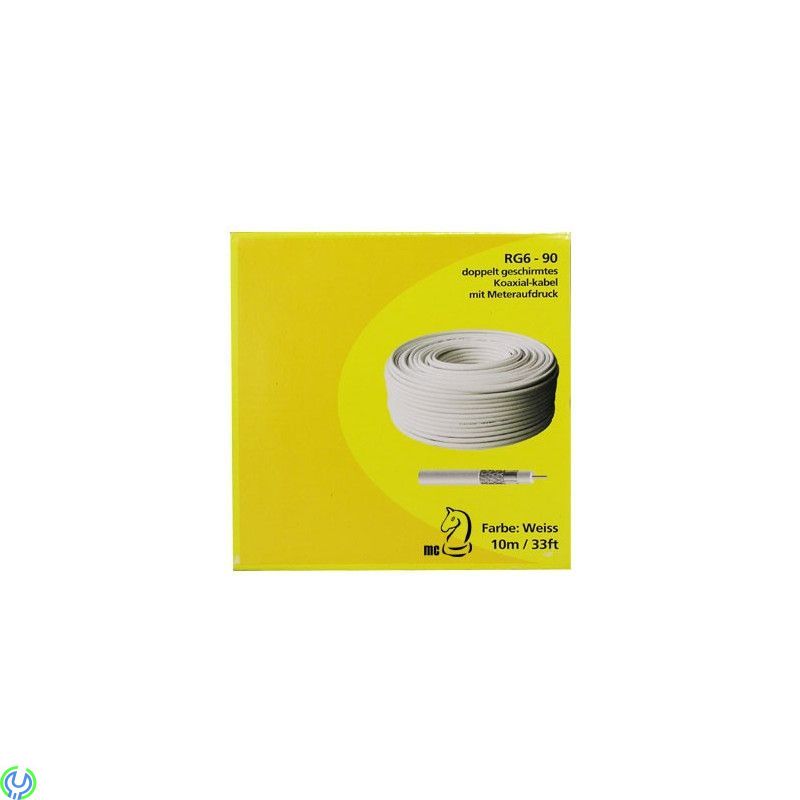

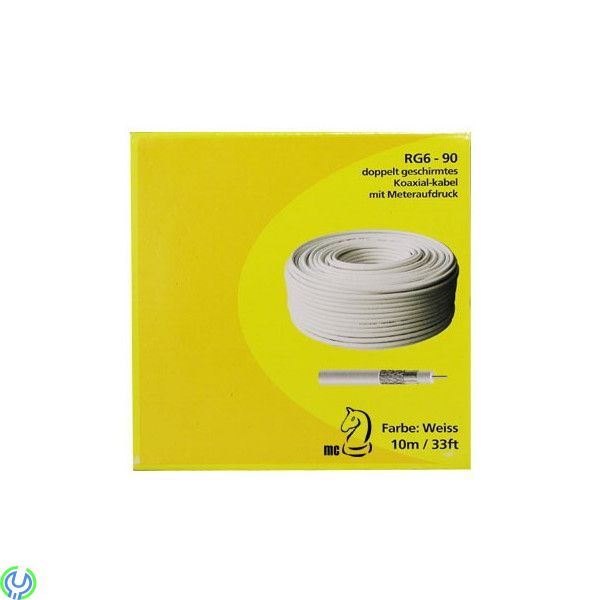

Installation cable - indoor/outdoor 10m

A white antenna cable for indoor/outdoor installation of TV antenna and satellite.
The cable is adapted to meet the requirements of digital TV.

Moisture and UV resistant coaxial cable. Double screened (with CU + aluminum screen).
When distributing many TV channels in a cable, high demands are placed on cable quality. The thicker the cable you choose, the lower the losses you get.
Keep in mind that at a damping of -3 dB, the signal level is halved. In the case of long wiring, you may have to compensate with an antenna amplifier.

The cable is meter marked.

Dammping at 20°C
Cushioning per 100m, max
100 MHz - 8.4 dB
200 MHz - 11.9 dB
300 MHz - 14.1 dB
500 MHz - 20.9 dB
800 MHz - 27.3 dB
1000 MHz - 31.7 dB
1350 MHz - 36.1 dB
1750 MHz - 41.4 dB
2050 MHz - 44.3 dB

Specifications
Classification: -
Inner conductor ¥: 0.7mm
Outer conductor ¥: 3.6mm
Mantle ¥: 4.6
Outer conductor "braid": 64x0,12mm aluminum
Impedance: 75 Ohms
Screen attenuation: 80dB
Outer conductor "foil": Aluminum foil
Shielding: Double-screened
Mantle: PVC

Inner conductor: Pure copper
